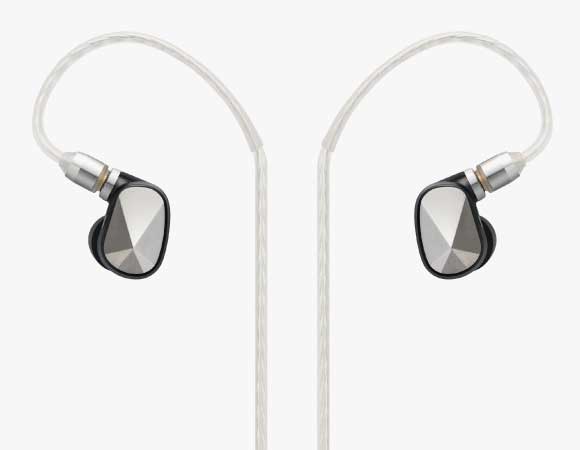

Campfire Audio x Astell & Kern – Pathfinder

Pathfinder – Hybrid IEM redefined

The top IEMs Solaris X from Campfire Audio x Astell & Kern have been highly praised by audiophiles around the world. Now they have been revived in cooperation with Astell&Kern in the form of the new Pathfinder.

The Combination for Perfect Balance

A completely new IEM design was needed for a wider frequency range, realistic reproduction, and a perfect balance.
To achieve this, PATHFINDER has a new Dual-Diaphragm Balanced Armature (BA) Driver from Knowles for the key part of the midrange, dual BA drivers for high frequencies, as well as two dynamic drivers with a hybrid diaphragms that create bass and midrange.

A Radial Venting Acoustic Chamber, newly developed by Campfire Audio, is applied to the two Custom 10mm Dynamic Drivers. The 3D-printed chamber design naturally expresses the intense low-frequency sound produced by the two dynamic drivers while preserving the unique sound of the Dynamic Driver.

Silver-Plated Copper and Flat Cable Design

Pathfinder comes with three silver-plated copper cables allowing the earphones to reach their full performance potential. The silver-plated OFC copper Litz cable is a newly produced flat cable, with enameled silver-plated copper wire conductor to offer clearer, extended sounds.
The flat cable prevents tangling, can be wound for easy storage, and has minimal cable distortion. It is over-molded for increased durability and finished with a metal housing.

Campfire Audio x Astell & Kern Pathfinder Made in the USA

The AK Pathfinder hand-assembled in Oregon by experienced artisans to ensure that each and every unit produced to the best possible quality standards.

Campfire Audio x Astell & Kern Pathfinder Specification

• Konfiguration
  • Höhen: Custom Dual Balanced Armature Drivers + T.A.E.C.
  • Mitten: All-New ‘Dual Chamber’ Balanced Armature Driver Technology from Knowles
  • Bass: All-New Dual Custom 10mm Dynamic Drivers paired with Radial Venting Technology
• Cable
  • 2.5mm Silver-Plated Copper Cable
  • 3.5mm Silver-Plated Copper Cable
  • 4.4mm Silver-Plated Copper Cable
• Material: Aluminum shell / Hand polished stainless steel threaded spout / Stainless steel Inlay and Parts
• Frequency Response: 5Hz-20kHz
• SPL: 94dB @ 1kHz 13.49mVrms
• Impedance: 6.2 Ohm @ 1kHz
• Total Harmonic Distortion Less than 1%

Whats in the box

• 2.5mm Silver-Plated Copper Cable
• 3.5mm Silver-Plated Copper Cable
• 4.4mm Silver-Plated Copper Cable
• 5 pairs of Final Audio E-Type Tips (XS/S/M/L/XL)
• 3 pairs of Campfire Audio Marshmallow Earphone Tips (S/M/L)
• 3 pairs of Silicon Earphone Tips (S/M/L)
• Earphone Cleaning Tool

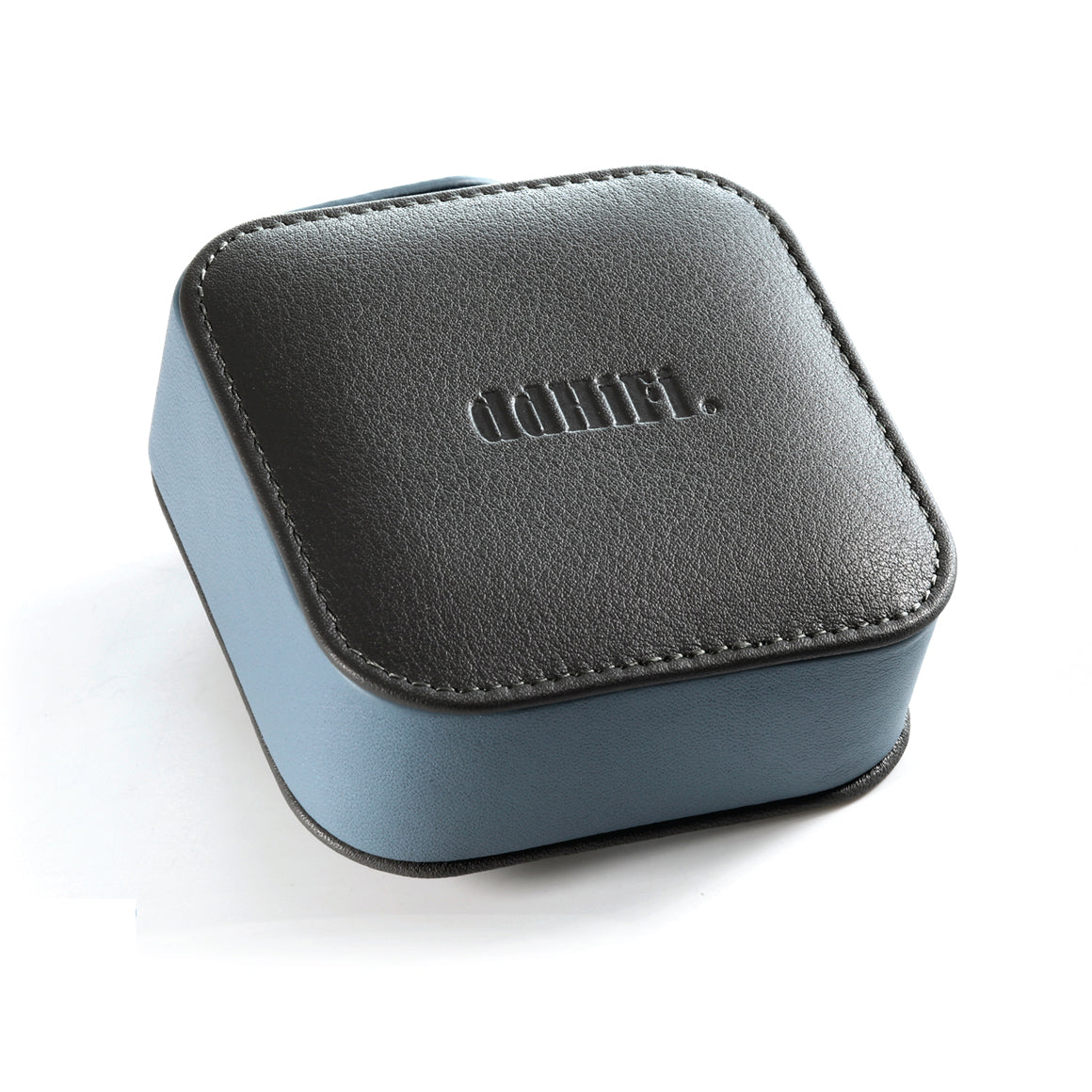

• Leather Zipper Case
• Earphone Protection Sleeve
• Earphone Tips and Cable Storage Pouch
