Product Description

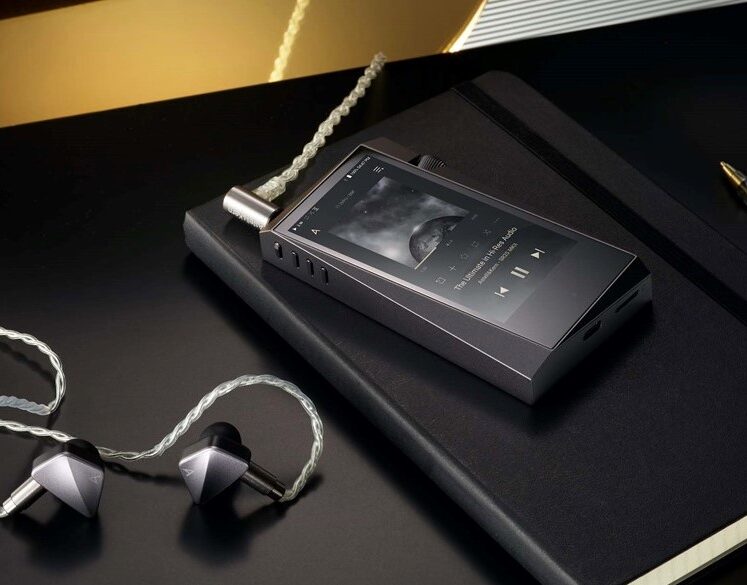

Astell & Kern A & Norma SR25 MKll

Additional detail and balance

Although Astell & Kern A & Norma SR25 MKll has a familiar look and feel, this new pocket powerhouse delivers greater sound thanks to Astell&Kern’s newest advanced audio design technology.

The natural high-resolution sonics produce clearly defined upper and lower tones as well as a deeper, more rounded sound than its predecessor.

The addition of the balanced 4.4mm headphone connector, which joins the 2.5mm (balanced) and 3.5mm (unbalanced) outputs, expands the range of headphones, IEMs, and devices that may be connected.

The 4.4mm balanced output enhances dynamic range and bass response, as well as supporting a larger soundstage and capturing clear imaging and delicate nuances in the audio source.

Firstly The SR25 MII, like the first-generation model, supports a wide range of high-resolution music formats and sample rates. Native DSD256 and 32-bit/384KHz PCM high-resolution audio playback bring every music fan closer to experiencing the artist’s original studio sound.

The SR25 MKII includes the latest high-definition Bluetooth wireless codecs: LDAC and aptXTM HD, allowing you to listen to your favorite hi-res music over a wireless connection.



Gain from a replay

In addition, the SR25 MKII adds Replay Gain to the mix.
secondly, This adjusts the volume of sound sources up to 24-bit/192 kHz automatically and consistently, allowing playlists to be enjoyed without having to alter the volume.



Additional options for connecting

AK File Drop, which was first launched in the A&futura SE180 player, allows for faster wireless file transfers.

Thirdly To make music management easier, users can wirelessly upload files from a PC, smartphone, or FTP software on the same network.
Second, the new BT Sink function allows the SR25 MKII to connect through Bluetooth to an external device, such as a smartphone, allowing high-quality music to be played back on the Astell&Kern player.



Improved internal protection

When internal components are in use, Astell&Kern players employ shield cans to avoid electromagnetic interference.

Lastly The SR25MKII has taken additional measures by putting highly conductive, hyper-pure silver plating to the existing shield cans for extra protection against these sound performance-affecting disturbances, which was first introduced in the higher-end A&ultima SP2000T.



Astell & Kern A & Norma SR25 MKll Design refined



The SR25 MKII retains the original SR25’s overall design identity, including the slanted top and bottom bezel edges that give the sense that the smaller inner rectangle is floating freely from the main body.

The new side volume wheel design is more distinct and tactile, calling more attention to this area of the player. Finally, the new deeper silver (Mercury D. Silver) distinguishes itself from the Moon Silver livery of the original.



Keep an eye on your Astell & Kern A & Norma SR25 MKll player



However, To complement the SR25 MKII, a protective case in a choice of three eye-catching finishes is available to protect this premium player from the rigors of life on the road.

This memory material is made from a soft and durable LASKINA® polyurethane fabric from Italy, and it provides exceptional grip while protecting against external shocks and scratches.

The SR25 MKII retains the original SR25’s overall design identity, including the slanted top and bottom bezel edges that give the sense that the smaller inner rectangle is floating freely from the main body.

The fabric also has the texture of traditional, high-end leather, with natural leather-style creases and sheen, creating a sumptuous and bright appeal.  In conclusion, Denim Blue, Orange, and Black are among the available colors.



Astell & Kern A & Norma SR25 MKll Specifications



Model: SR25 MKII

Body Colour: Mercury Dark Silver

Body Material: Aluminium

Display: 3.6-inch HD 720 x 1280 px touch screen

Supported Audio Formats: WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA

Sample rate PCM : 8kHz ~ 384kHz (8/16/24/32bits per Sample) DSD Native: DSD64(1bit 2.8MHz).  Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo

Output Level: Unbalanced 2Vrms │ Balanced 4Vrms (Condition No Load)

CPU: Quad-core

DAC: Ciruss Logic CS43198 x2 (Dual-DAC)

Decoding: Support up to 32bit / 384kHz Bit to Bit playback

Input: USB Type-C input (for charging & PC & MAC)

Outputs: Unbalanced Out (3.5mm), Balanced Out (2.5mm, only 4-pole supported / 4.4m, only 5-pole supported)

Wi-Fi: 802.11 b/g/n (2.4GHz)

Bluetooth: V4.2 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC)

Dimensions: 2.5” (63.5mm)[W] x 4.26” (108.3mm)[H] x 0.63” (16.1mm)[D]

Weight: about 178g (6.27oz)

Firmware upgrade supported (OTA)

Operating Temperature: 0℃ ~ + 40℃ (32℉~ 104℉)

Frequency Response

• ±014dB (Condition : 20Hz~20kHz) Unbalanced │ ±0.011dB (Condition : 20Hz~20kHz) Balanced
• ±0.010dB (Condition : 20Hz~70kHz) Unbalanced │ ±0.012dB (Condition : 20Hz~70kHz) Balanced

S/N

• 122dB @ 1kHz, Unbalanced
• 124dB @ 1kHz, Balanced

Crosstalk

• -138dB @ 1kHz, Unbalanced
• -144dB @ 1kHz, Balanced

THD+N

• 0006% @ 1kHz, Unbalanced
• 0005% @ 1kHz, Balanced

IMD SMPTE

• 0004% 800Hz 10kHz (4:1) Unbalanced
• 0003% 800Hz 10kHz (4:1) Balanced

Output Impedance

• Unbalanced Out 3.5mm (1.2ohm)
• Balanced Out 2.5mm (1.8ohm), 4.4mm (1.7ohm)

Clock Jitter: 25pS (Typ)

Reference Clock Jitter: 70ps

Built-in Memory: 64GB [NAND]

External Memory: microSD x1 (Max. 1TB)

Capacity: 3,150mAh 3.7V Li-Polymer

Charge Time: about 2.5hours (5V 2A General Charging)

Playback Time: about 20hours (Standard : FLAC, 16bit, 44.1kHz, Unbalanced, Vol.50, EQ Off, LCD Off)

Supported OS: Windows 7,8,10(32/64bit) MAC OS X 10.7
