Stax SRM-D10 II
Highlights
DSD and PCM support: The SRM-D10 II can faithfully reproduce high-resolution audio formats and supports DSD sampling rates up to DSD256 and PCM sampling rates up to 384kHz/32bit.
High-quality power amplifier: The SRM-D10 II is equipped with a high-quality power amplifier that offers outstanding performance and remarkable power.
High output voltage: A robust DC bias voltage of 580 V increases the output power of the amplifier, resulting in a dynamic and powerful sound image.

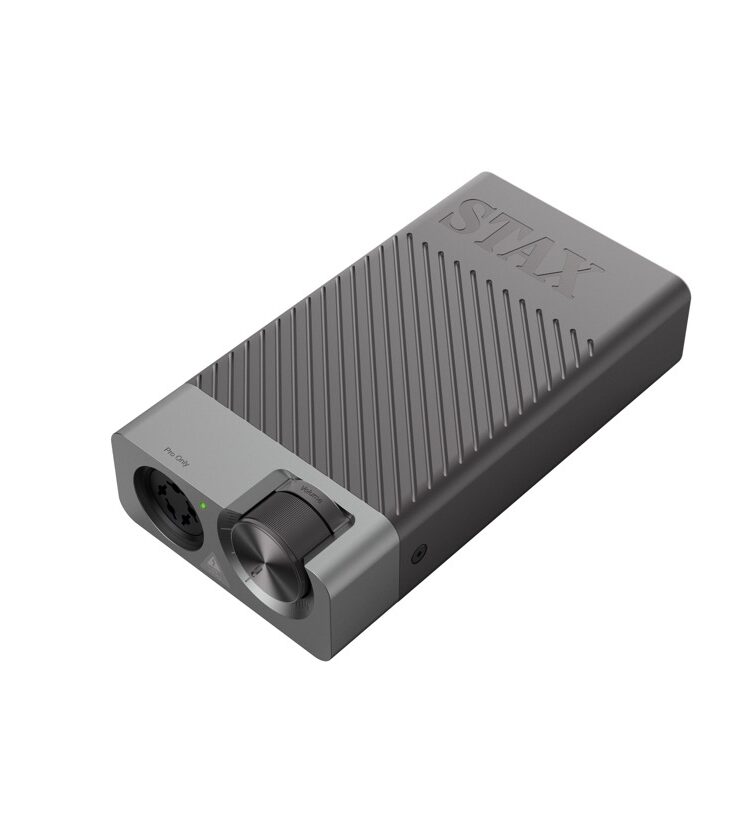

Robust aluminum alloy housing: The aluminum alloy housing has a sleek, modern design and offers greater strength and corrosion resistance, so the SRM-D10 II is built to last.
Versatile connectivity: The SRM-D10 II supports digital USB and analog 3.5mm audio inputs, providing flexibility when connecting to a variety of devices.
Compatibility: Designed to complement all STAX PRO headphones, the SRM-D10 II ensures that your customers can utilize the full potential of their headphones.
D10 II vs. D10
Native DSD support: On the SRM-D10 II, the USB input now supports native DSD hardware decoding, providing a direct path for DSD audio streams. Due to system limitations, DOP output remains the standard on Mac iOS systems.
Extended PCM support: The SRM-D10 II extends its capabilities by offering PCM support for 384kHz/32bit on the USB output – a significant jump over the original SRM-D10 with 192kHz/24bit. This allows you to enjoy high-resolution audio data in even greater detail.
Improved components: In the SRM-D10 II, many resistors and capacitors that have a direct impact on sound quality have been replaced with Samsung components. In addition, both the tubes and capacitors have been improved, resulting in a more refined and immersive listening experience.
Clarity and openness: One of the main goals of the SRM-D10 II was to solve the problem of sound muddiness that occurred with the older version over time. The result is a clearer and brighter sound profile with subtle adjustments that ensure consistently vibrant audio reproduction.
Long battery life: With a battery life of approx. 4.5 hours (analog input) / 3.5 hours (digital input), your customers can use the SRM-D10 II on the go for a long time.
Technische Daten
- Nominal input level: 230 mV (100 V at the output)
- Maximum input level: 10 V (minimum volume at Line In input)
- Gain: 53 dB
- Harmonic distortion: ≤0.025 % / 1 kHz-10 kHz
- Input impedance: 10 KΩ (line-in input)
- Maximum output voltage: 200 Vr.m.s / 100 Hz – 10 kHz
- Supply voltage: DC 5 V/9 V/12 V/15 V
- Power consumption: 6.4 W (USB input) 5 W (line-in input)
- Battery life of approx. 4.5 hours (analog input) / 3.5 hours (digital input)
- DSD support: Up to DSD256
- PCM support: Up to 384 kHz/32 bit
- Output bias voltage: DC 580 V
- Housing material: Aluminum alloy

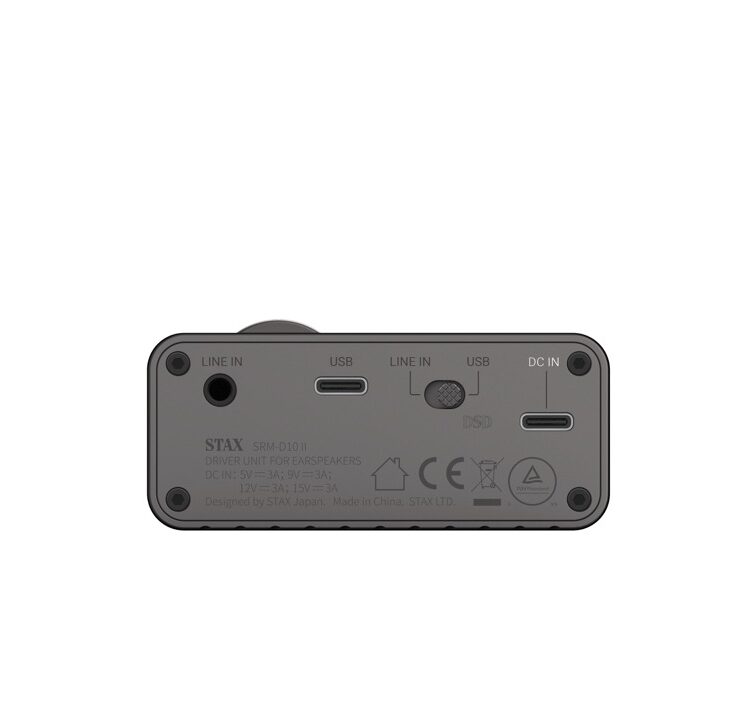

- Input options: USB digital, 3.5mm analog
- Compatibility: Suitable for all STAX PRO headphones
